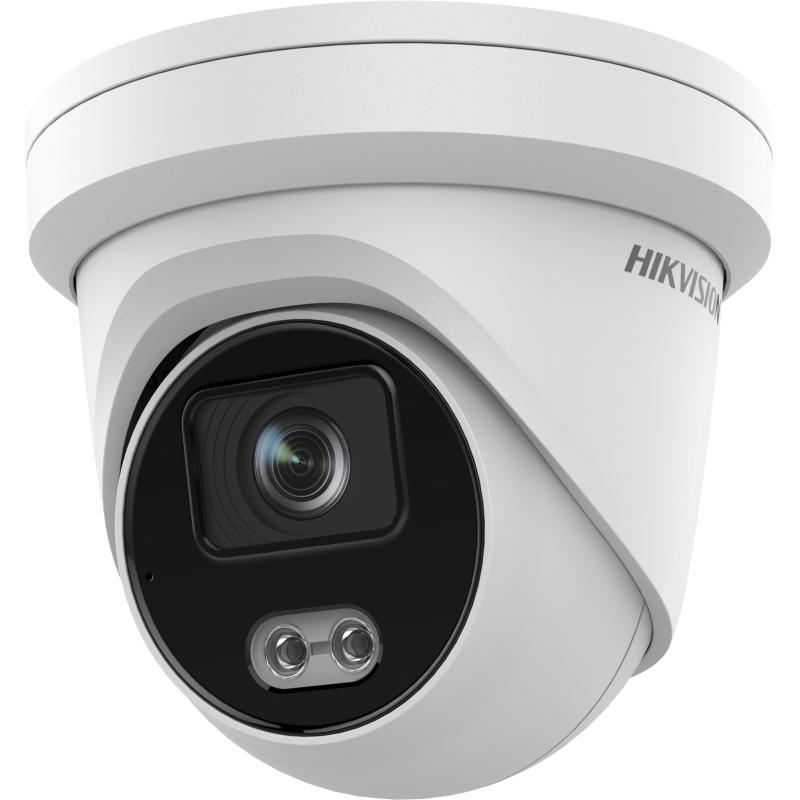

4MP ColorVu Fixed Turret Network Camera DS-2CD3347G2E-LUF

4MP ColorVu Fixed Turret Network Camera

Specification

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Iris TypeFixed
• Lens MountM16
• Focal Length & FOV

  2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

  4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

• ApertureF1.0

• DORI
• DORI

  2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

  4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

  6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Fourth Stream

  50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  *Fourth stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  Fourth stream: H.265/H.264/MJPEG

  *Third stream and fourth stream are supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)5 fixed regions for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Privacy Mask4 programmable polygon privacy masks
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Built-in Microphone-U: Yes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart EventUnattended baggage detection, object removal detection, scene change detection, audio exception detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W

• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• MaterialAluminum alloy body
• DimensionØ138.3 mm × 125.2 mm (Ø5.4″ × 4.9″)
• Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• WeightApprox. 790 g (1.7 lb.)
• With Package WeightApprox. 1070 g (2.4 lb.)

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)
