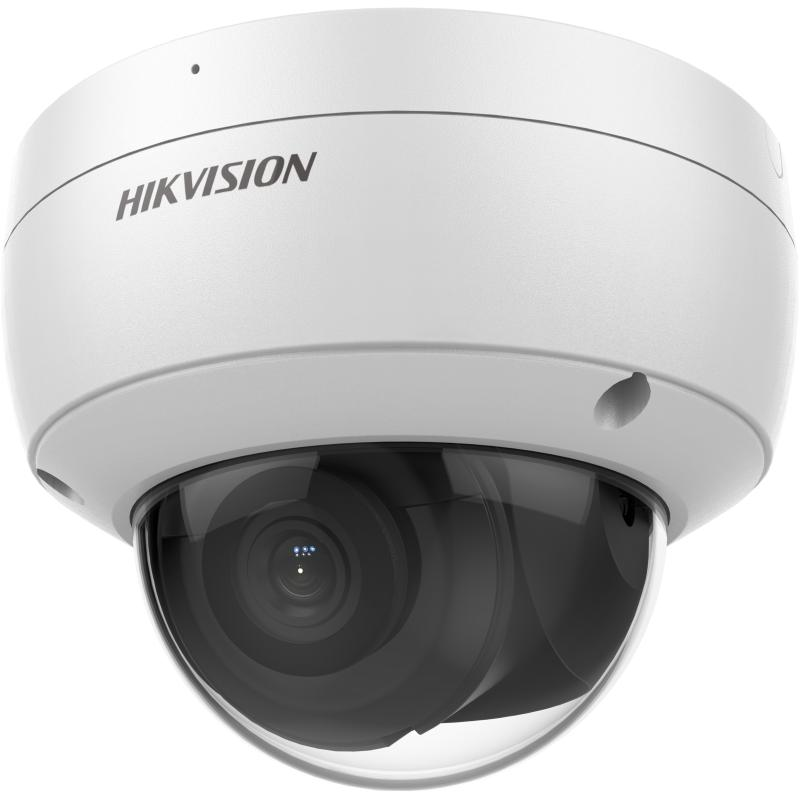

8MP AcuSense Vandal Fixed Dome Network Camera DS-2CD2183G2-IU

CATEGORY AND TAGS:
Hikvision Products, Network Cameras

1）High quality imaging with 8MP resolution

2）Clear imaging against strong backlight due to 120 dB true WDR technology

3）Efficient H.265+ compression technology Hikvision Camera

4）Focus on human and vehicle targets classification based on deep learning

1）High quality imaging with 8MP resolution

2）Clear imaging against strong backlight due to 120 dB true WDR technology

3）Efficient H.265+ compression technology Hikvision Camera

4）Focus on human and vehicle targets classification based on deep learning

5）Built-in microphone for real-time audio security

6）Water and dust resistant (IP67) and vandal-resistant (IK10)

Specification

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
Lens MountM12
Iris TypeFixed
ApertureF1.6

DORI
DORI
2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Video
Main Stream

50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream

Audio
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In MicrophoneYes
Reset KeyYes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
Dimension

Ø121.4 mm × 92.2 mm (Ø4.8 × 3.6\”)”
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
