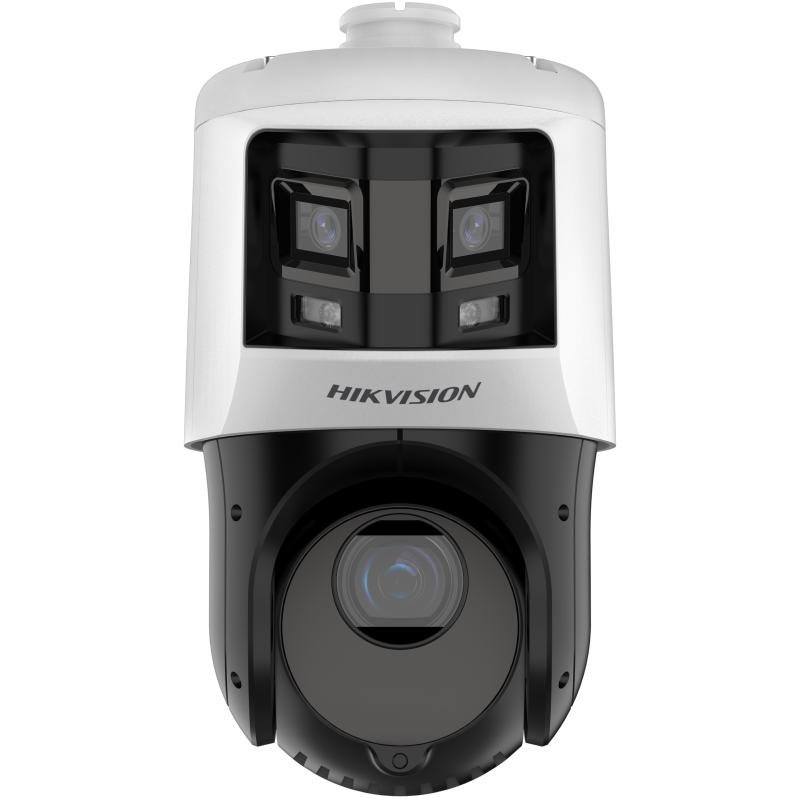

TandemVu 6+4MP 25X Colorful & IR Panoramic & PTZ Camera DS-2SE4C425MWG-E/26(F0)

KATEGORIE UND TAGS:
Hikvision-Produkte, Netzwerk-PTZ-Kamera

1）Captures a large area and great details at the same time

2）High quality panoramic imaging with 6MP resolution and details imaging with 4 MP

3）Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

4）Secures an expansive area with 25× optical zoom and 16× digital zoom Hikvision PTZ Camera

1）Captures a large area and great details at the same time

2）High quality panoramic imaging with 6MP resolution and details imaging with 4 MP

3）Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

4）Secures an expansive area with 25× optical zoom and 16× digital zoom Hikvision PTZ Camera

5）Expansive night view with up to 100 m IR distance & 30 m white light

6）Supports 12V DC & PoE+

7）Focuses on human and vehicle targets classification based on deep learning

Spezifikation

Kamera
Bildsensor[Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Max. Auflösung[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
mir. Erleuchtung
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Farbe: 0.005 Lux @ (F1.6, AGC ON), B / W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux mit IR
Shutter Speed1 s to 1/30,000 s
Tag & NachtICR
Zoomen[PTZ channel] 25 × optical, 16 × digital
Slow Shutteryes

Linse
Brennweite[Bullet channel]: 2.8 Millimeter; [PTZ channel]: 4.8 zu 120 Millimeter, 25 × optical
FOV
[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)
FokusSemi-automatisch||Handbuch||Auto
Öffnung[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed[PTZ channel]: approx. 3.6 s

Illuminator
Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range[PTZ channel]: bis zu 100 m; [Bullet channel]: bis zu 30 m
Smart Supplement LightJa

PTZ
Movement Range (Schwenken)360°
Movement Range (Neigung)-15° bis 90° (auto-Flip)
Schwenkgeschwindigkeitpan speed: configurable from 0.1° to 80°/s; preset speed: 80° / s
Neigungsgeschwindigkeittilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Panyes
Voreinstellungen300
Preset Freezingyes
Patrol Scan8 Patrouillen, bis zu 32 Voreinstellungen für jede Patrouille
pattern Scan4 pattern scans
Park ActionVoreinstellung||pattern scan||patrol scan||auto-Scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled TaskVoreinstellung||pattern scan||patrol scan||auto-Scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Speicher ausschaltenyes

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio BitrateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Audio Sampling RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
Environment Noise Filteringyes

Netzwerk
ProtokolleIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP / IP||UDP||IGMP||ICMP||DHCP||PPPoE||Hallo||WebSocket||WebSockets
Simultaneous Live View20
APIISAPI,SDK,ISUP,ONVIF
Benutzer/Host32
SicherheitAuthenticated username and password||MAC address binding||HTTPS-Verschlüsselung||802.1X authenticated access||IP address filter
NetzwerkspeicherNAS (NFS, SMB/ CIFS)|| ANR
KlientiVMS-4200||Hik-Connect
WebbrowserIE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+

Image Parameters SwitchJa
Image SettingsSchärfe, Sättigung, Helligkeit, Kontrast
Day/Night Switchday, night, Auto, scheduled-switch
Eine große dynamische Reichweite (WDR)120 dB
SNR≥ 52 dB
AndächtigDigitale Entnebelung
BildstabilisierungEIS
Image EnhancementBLC,HLC,3D DNR
Datenschutzmaske[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional FocusJa
Regional ExposureJa

Schnittstelle
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, bis zu 256 GB
Audio1 Audioeingang, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 Audioausgang, line level, impedance: 600 oh
Alarm1 Alarmeingang, 1 Alarmausgang
Resetyes

Event
Basic Event[PTZ channel] Bewegungserkennung, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP-Adressenkonflikt, Festplatte voll, illegal login, HDD error, Netzwerk getrennt, Abnormal Reboot)
Intelligentes Ereignis[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,E-Mail senden,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
Smart LinkagePanorama Linkage

Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously,

Supports detecting, Verfolgung, capturing, grading, selecting of face in motion, and outputs the best face picture

Allgemein
Leistung12VDC, PoE+
AbmessungenØ 166 mm × 375 Millimeter (Ø 6.5″ × 14.7″)
GewichtApprox. 2.4 kg (13.2 lb.)
MaterialADC12
Betriebszustand-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
Allgemeine Funktionmirror,watermark,password protection
DemistDemist by heating the glass
Power Consumption and CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
