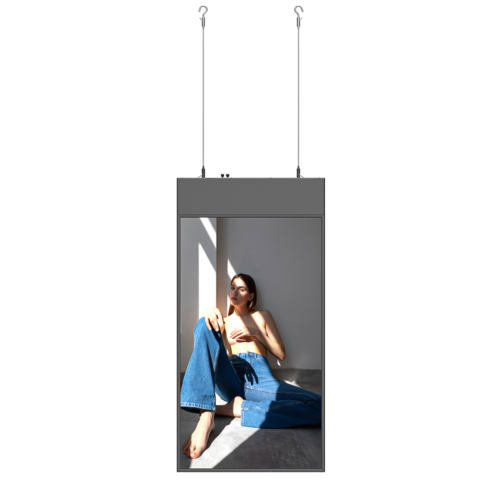

| Modèle |
WD49OET-2 |
| UNEppearance |
Couleur |
Grey optional/customizable color for more than 10 units |
| |
Body size |
1283.8*640.3*25(L*W*T) |
|
Body material |
Sheet Metal |
| |
Installation method |
pendant-mounted |
| Package |
Package size |
1350*250*960 MM |
| |
Whole weight |
33kg |
| Afficher |
Taille |
55″TFT LED |
|
Display area/proportion |
1073.8mm x604mm |
|
Maximum Resolution |
1920× 1080 |
|
Luminosité |
700cd/m2 2500cd/m2(High brightness surface can be selected from 1000-3000) |
|
Contrast Ratio |
1300:1 |
|
Viewing Angle |
(Up/Down/Left/Right):89°/89°/89°/89° |
|
Response Time |
6Mme |
|
Couleur |
16.7M color |
| Power supply and power consumption |
100V~240V AC, ≤180W |
| Motherboard |
Interface |
RK3288, CPU 4-core 1.8GHz GPU 4-core Mali-T764DDR3 running memory 2GB storage space 16GB (expandable)2 external USB ports
4 built-in USB ports
1 Dakota du Sud
1 RJ45 Ethernet port
1 LVDS, 1 HDMI 2.0 support 4K@60HZ Output (customization required)
Supports WiFi/Bluetooth/expandable 3G, 4g |
|
Système opérateur |
Android 5.1.1 |
|
| |
Menu Language |
Chinese English Russian American English French Spanish and other multilingual menus |
|
Video support formats |
Support RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, |
|
Audio support format |
MPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC 5.1/HE-AAC5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 |
|
Image support format |
BMP、JPEG、PNG、GIF |
| Function |
Other supported formats |
PDF、PPT、SWF、 Text, real-time data stream |
|
Split Screen |
Video area, graphic area, scrolling subtitles, logo area, date area, time area,Week zone, weather forecast zone, real-time image zone, real-time video zone |
|
System upgrade mode |
SD card update |
|
system management mode |
Unified management, group management, multi-user management, remote management, timed power on/off |
|
Remote operation mode |
Remote automatic power on/off, remote update, editing, and playback of programs, remote monitoring of status |
|
System playback mode |
Support multiple playback modes such as loop, timed, and interstitial playback |
|
System Architecture |
Adopting advanced B/S (Browser/Server) management architecture |
|
Support network |
LAN, WAN, WIFI, 3g |
|
Built in speaker |
Built in mini dual speakers |
|
|
Reliability |
50000h |
|
Operate temperature |
-10℃ ~50℃ |
|
Température de stockage |
-20℃ ~60℃ |
|
Humidité d'exploitation |
5% ~ 90% |
| Others |
Humidité de stockage |
5% ~ 90% |
|
Safety indicators |
Support hardware encryption dongle, login password, control password, and hierarchical user permission settings |
|
Quality standards |
Compulsory Certification of Chinese Electrical Products (3C) |
|
Environmental standards |
All components and packaging materials comply with international environmental standards |
