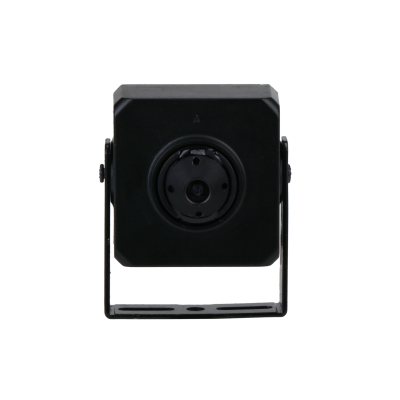

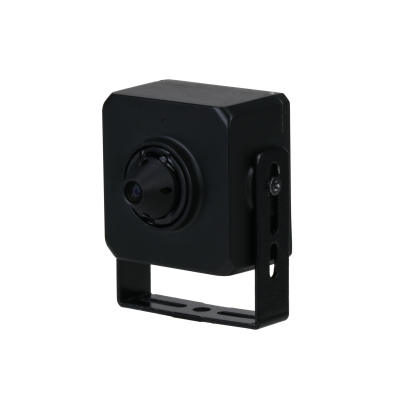

2MP Fixed-focal Pinhole Network Camera
> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> RoI, SMART H.264+/H.265+, flexible coding, applicable to various band width and storage environments
> Rotation mode, WDR 120dB, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Tripwire and intrusion
> Abnormality detection: Motion detection, video tampering, scene chang ing, audio detection, network disconnection, IP conflict, illegal access, voltage detection
> Audio: 1 in, 1 out
> 12V DC power supply
Specifications
|
Camera
|
|
Image Sensor
|
1/2.8″ CMOS
|
|
Effective Pixels
|
1920 (H) ×1080 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
S/N Ratio
|
> 56 dB
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.005 [email protected] (Color, 30IRE)
0.0005 [email protected] (B/W, 30IRE)
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
|
|
Max. Aperture
|
F2.0
|
|
Field of View
|
Horizontal: 108° × Vertical: 59° × Diagonal: 118°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
0.6 m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
42.1 m
(138.1 ft)
|
16.8 m
(55.1ft)
|
8.4 m
(27.6 ft)
|
4.2 m
(13.8 ft)
|
|
Smart Event
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
Video Compression
|
Main stream: H.264; H.264H; H.264b; H.265
Sub stream:H.264; H.264H; H.264b; H.265; MJPEG
|
|
Smart Codec
|
Yes
|
|
Video Frame Rate
|
Main stream: 1920 × 1080 @1-25/30 fps
Sub stream: 704 × 576 @25 fps; 704 × 480 @30 fps
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
Main stream: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
Sub stream:D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 3 kbps–6144 kbps
H.265: 3 kbps–6144 kbps
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Audio Compression
|
G.711A; G.711Mu; G.726
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTS; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; Bonjour
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Interoperability
|
ONVIF (Profile S); CGI; Milestone; Genetec
|
|
User/Host
|
20 (Total bandwidth: 64 M)
|
|
Edge Storage
|
FTP; SFTP; NAS
|
|
Browser
|
IE: IE8; IE9; IE11
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certifications
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Power
|
|
Power Supply
|
12V DC
|
|
Power Consumption
|
Basic power consumption: 1.3W (12V DC)
Max. power consumption (IVS): 1.4W (12V DC)
|
|
Environment
|
|
Operating Conditions
|
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
|
|
Strorage Conditions
|
–40 °C to +60 °C (–40 °F to +140 °F)
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
34.6 mm × 44 mm × 30 mm (1.4″ × 1.7″ × 1.2″)
|
|
Net Weight
|
82 g (0.2 lb)
|
|
Gross Weight
|
128 g (0.3 lb)
|
