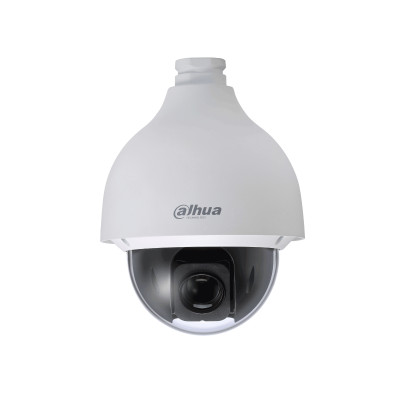

SD50432XA-HNR

Camera

Image Sensor

1/2.8″ STARVIS™ CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 [email protected]
B/W: 0.0005 [email protected]

Lens

Focal Length

4.9 mm–156 mm

Max. Aperture

F1.35–F4.4

Field of View

H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5°

Optical Zoom

32x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

1 m–1.5 m (3.28 ft–4.92 ft)

Iris Control

Auto/Manual/Fixed

DORI Distance

Detect

Observe

Recognize

Identify

3120 m (10236.22 ft)

1232 m (4041.99 ft)

624 m (2047.24 ft)

312 m (1023.62 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360° endless
Tilt: 0° to +90°, auto flip 180

Manual Control Speed

Pan: 0.1°/s–350°/s
Tilt: 0.1°/s–250°/s

Preset Speed

Pan: 500°/s
Tilt: 500°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

IVS

Object Abandoned/Missing

Artificial Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Support

Auto Tracking

Support

SMD PLUS

Support

Video

Compression

H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480): CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720P (1–25/30 fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Electronic

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Compression

G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth 64M)

Storage

FTP; Micro SD card (256G); NAS

Browser

IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS

Mobile Phone

IOS, Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Port

Audio Input

1

Audio Output

1 (LINE OUT; bare wire)

Two-way Audio

Support

Alarm I/O

2/1

Power

Power Supply

DC24V/2.5A

PoE+ (802.3at)

Power Consumption

Basic: 10W
Max: 16W

Environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤ 95%

Protection

IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection

Structure

Dimensions

Φ186 mm x 253 mm (Φ7.32″ x 9.96″)

Net Weight

2.5 kg (5.51 lb)

Gross Weight:

4.5 kg (9.92 lb)
